▶. Overview

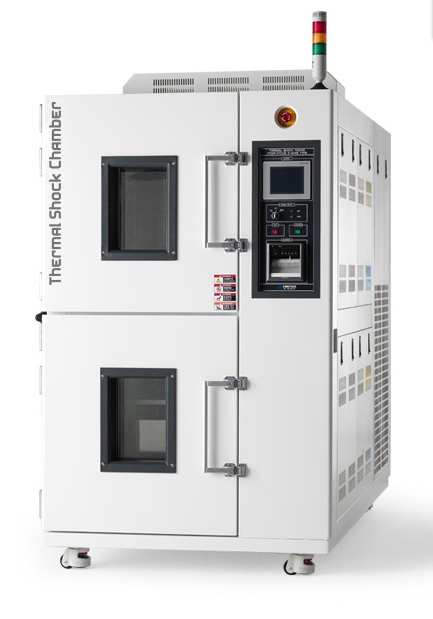

. THERMAL SHOCK TESTER?
The parts are installed in a closed test space
This facility is equipped with facilities such as high temperature room, low temperature room, test jig,
Equipment operation can be combined with CYCLE and unattended operation by PROGRAM.
▶. Operating environment and production specifications
1) Recommended use environment
. TEMP RANGE: 20 ± 5 ℃ , HUMIDITY RANGE: 45 ~ 85% RH
. Power Specifications: AC380V 3P 50Hz, 15kW
. Room with flat bottom and no vibration
2) Production specifications
MODEL: KTC-101 SERIES (Made to order)
TEST METHOD: CHAMBER Structure: Top: High greenhouse, bottom: Low temperature room
Principle: 2 Zone It maintains the temperature by attaching air regulating plate which
adjusts the blowing amount in the duct by the elevator method.
CHAMBER DIMENSION: TEST ZONE: 350 * 350 * 350mm
OUTSIDE: 2,800(W) X 1,550 (D) X 2,150 (H) mm (subject to change)
SAMPLE LOADING WEIGHT: 5Kg (ABOUT)
CONTROL CYCLE RANGE : HEATING ZONE : RT ~ 150℃ 30Min within
COOLING ZONE : RT ~ -50℃ 60Min within
TEMP CONSTANCY : ± 0.5℃
