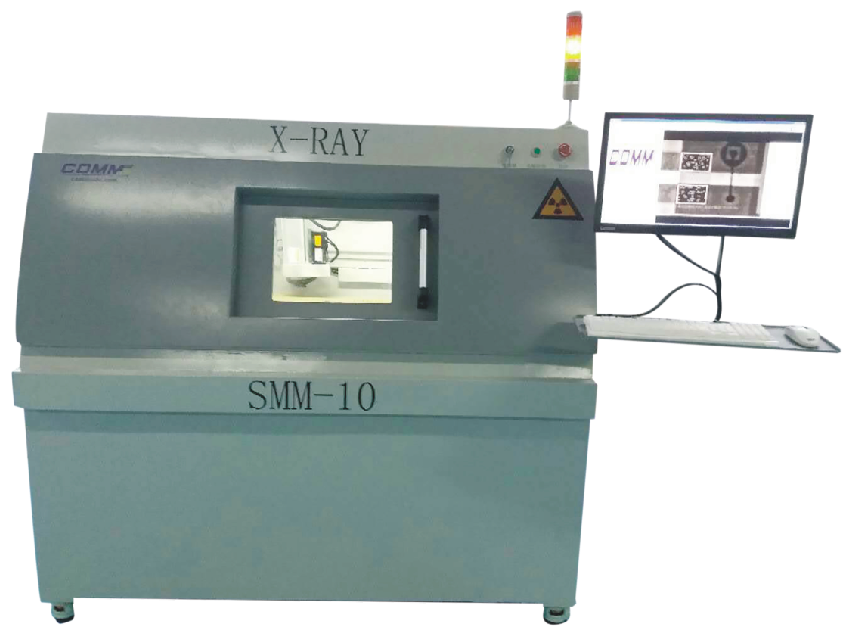

SMT X-ray Inspection Equipment

Tube voltage ：90kV、110 kV、130 kV

Tube current ：0.15mA、0.2mA

Tube focus：5um、2um

FPD area: 150 mm×120mm

FPD pixels: 1536×1536

Left and right Inclination：45°

Samge intensifier: 360°rotation

Detection of lift travel: ：420mm

Maximum Inspection Workpiece: 420mm*420mm

Equipment size：about 1200mm*1600m*1500mm

Equipment weight：1000kg

Power: AC110V~220V      15A
