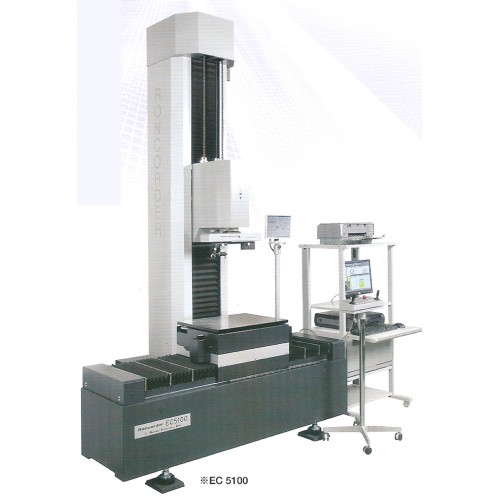

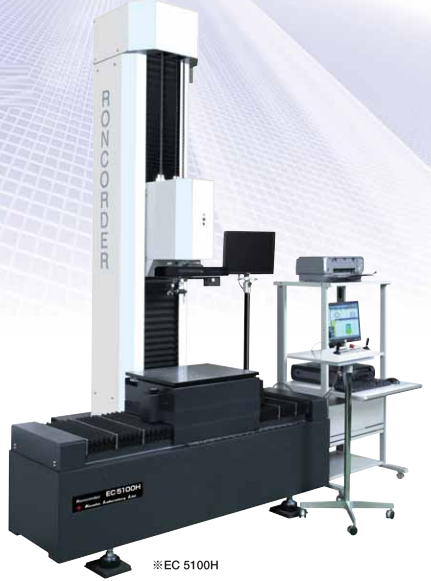

EC5100/EC6100

EC5100/EC6100 is post new-generation jumbo type measuring instrument. Auto measuring of heavy duty components with high accuracy.
-Mechanism / system               Porous static pressure air bearing system /pick-up rotation
                                              type
-Rotation accuracy                   0.06 μm
-Max. measuring diameter         φ450 mm both inner and outer diameters
                                              (* In case of EC5100)
-Loading capacity                     200 kg

                                             (* In case of EC5100)
-Z traverse range                      750 mm (at the use of b-type stylus arm)
                                             (* In case of EC5100)
