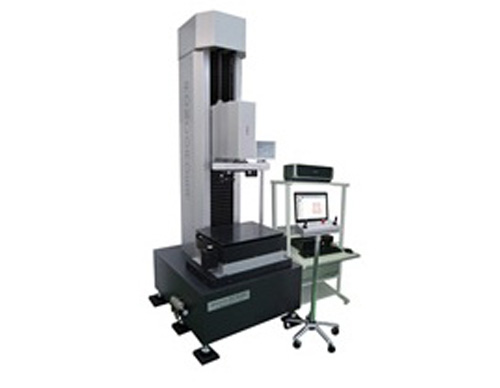

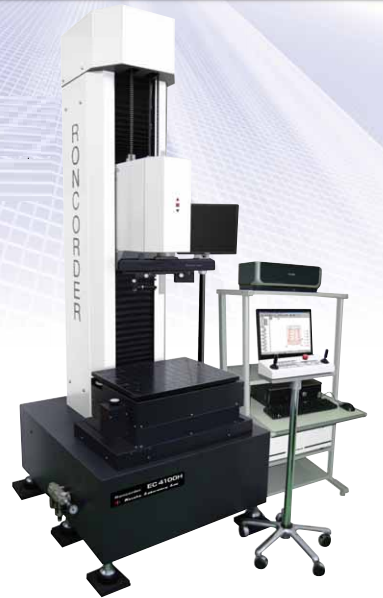

EC4100 is proper model for heavy duty workpiece. Space saving type with auto centering, tilting, flattering table is mounted.
-Mechanism / system Porous static pressure air bearing system / table rotation type
-Rotation accuracy 0.06 μm
-Max. measuring diameter φ450 mm both inner and outer diameters
-Loading capacity 200 kg
-Z traverse range 750 mm (at the use of b-type stylus arm)
-Mechanism / system Porous static pressure air bearing system / table rotation type
-Rotation accuracy 0.06 μm
-Max. measuring diameter φ450 mm both inner and outer diameters
-Loading capacity 200 kg
-Z traverse range 750 mm (at the use of b-type stylus arm)
