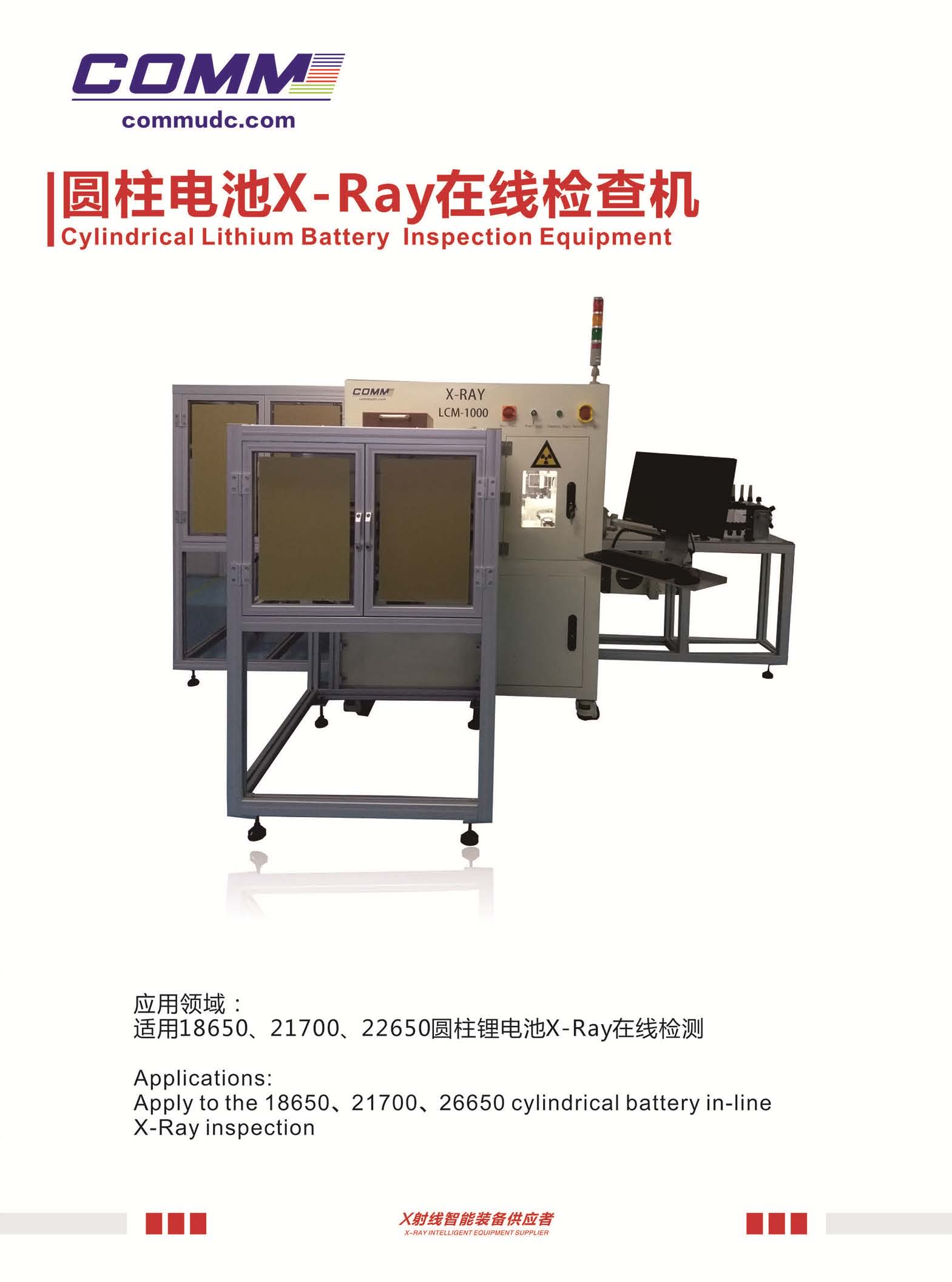

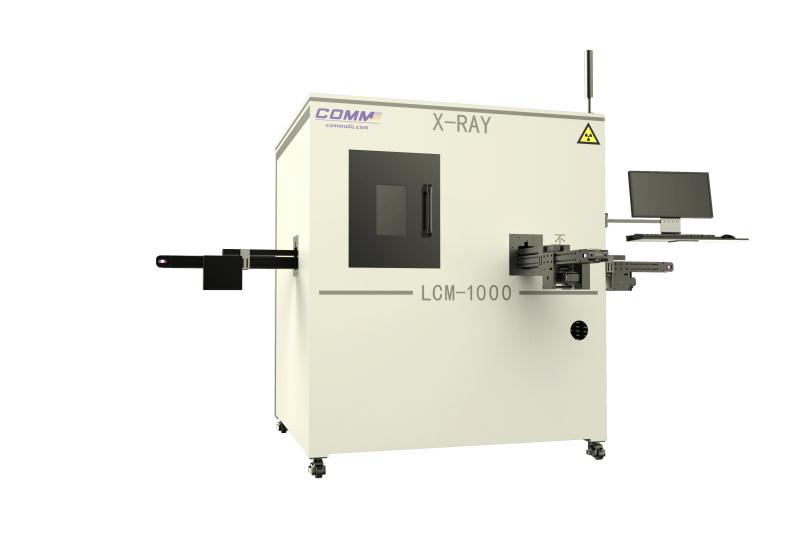

Cylindrical battery X - Ray machine online inspect

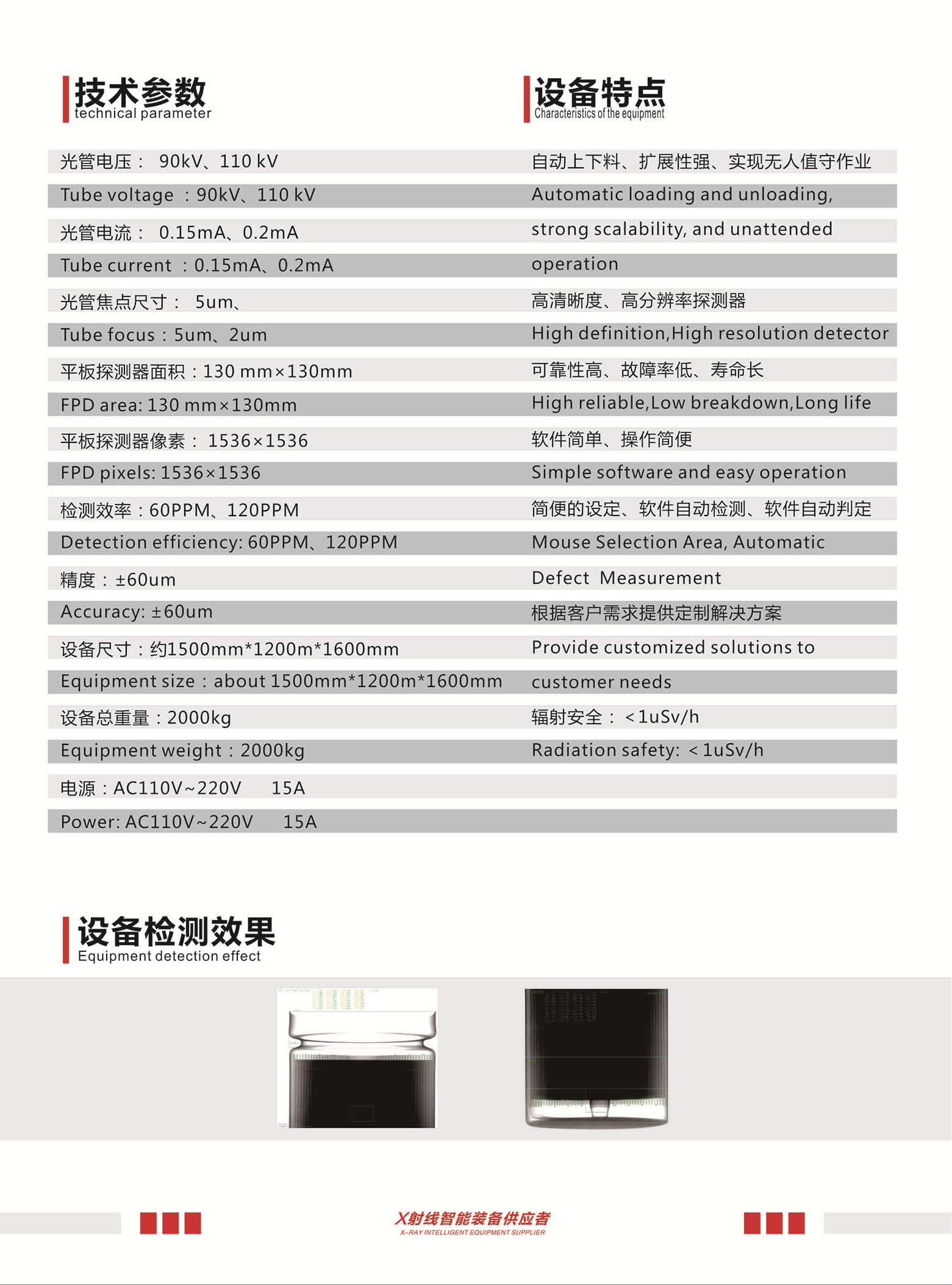

X-ray tube voltage: 90 kV, 110 kV

Light tube current 0.15 mA, mA, 0.2

Light pipe size: 5 um,

Flat-panel detector area: 130 mm * 130 mm

Flat-panel detector pixels: 1536 x 1536

Detection efficiency: 60 PPM, 120 PPM

Accuracy: + / - 0.06 mm

Equipment size: 1500 mm * 1200 m * 1600 mm

Equipment: the total weight 2000 kg

Power supply: AC110V ~ 220 v 15 a
